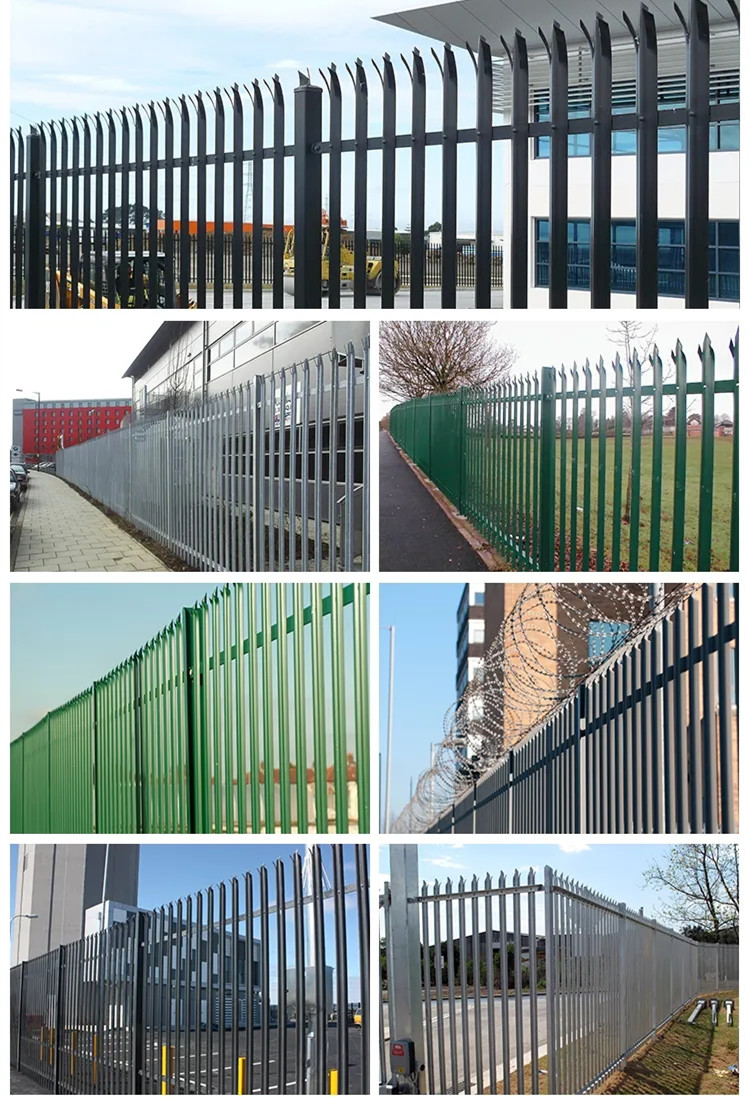

Palisade fence is a great solution for the place which need high security, it's widely used in Europe, American and South Africa.

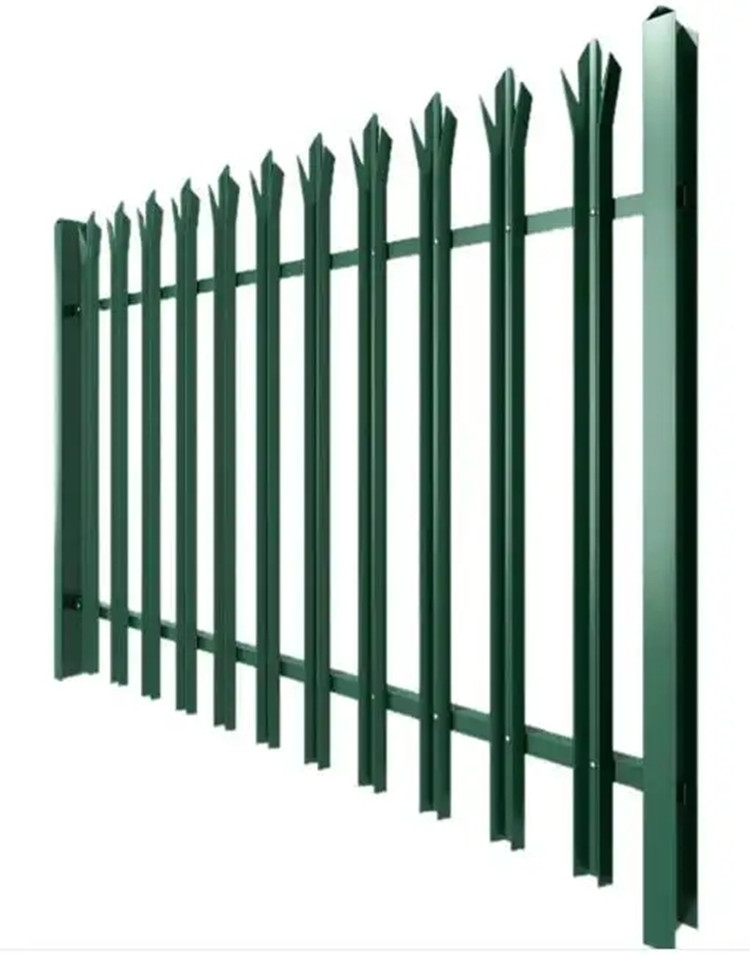

Palisade fencing is a style of security fence with tightly spaced vertical uprights, called pales. Pales come in various shapes and sizes. The security level you are trying to achieve will determine what shape and how close the pales will be.
Each pale has a specific design cut into the top. Designs range from flat tops to trident styles and splayed tips with sharp points. As result, making palisade fencing very difficult to climb over.
Metal palisade fencing is made from steel. Stronger than wood, fire proof and readily available for manufacturing.

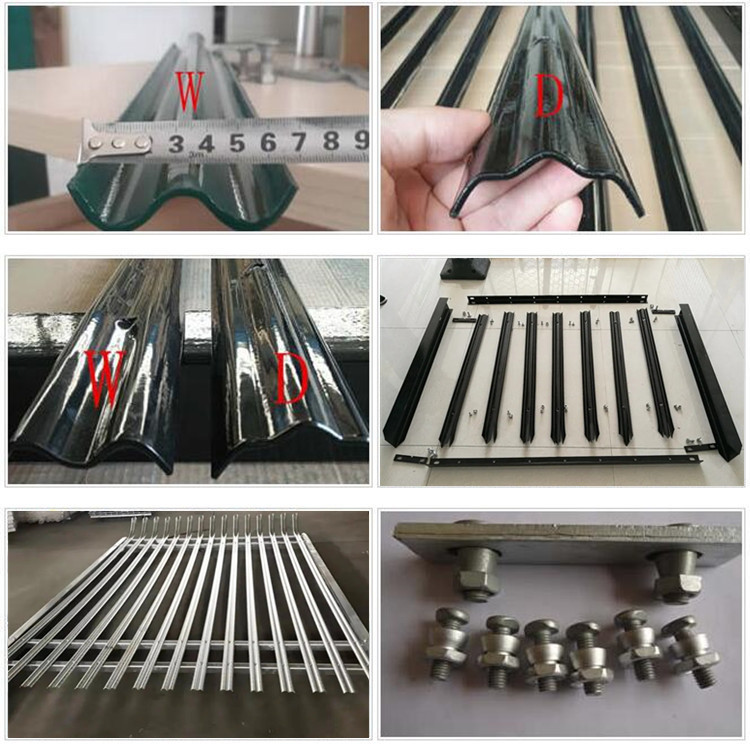

The framework consists of posts, rail and the pales. There are two main design offerings for the pales. A“D”shape and a“W”shape. The extra ridges in the W shaped pale gives it more strength.
Pale tops are also available in different styles. Straight pales, splayed tips and curved pales are all options. However, the splayed tip with a three pointed spear top is the best at providing maximum security.
Each pale bolts into place on the rails to form the palisade fencing panel. The distance between the pales determines how secure the fence is.
Just like the original wood design, the closer the pales are together, the harder it is to climb. Panels, come in 8′ wide lengths. Heights are available from 4′ tall to 12′ tall depending on the customer's request.
Palisade fencing naturally presents an intimidating and strong look. However, for even more security and intimidation, adding curved pales is an option.
Curved pales have a radius at the top that point outwards. Much like adding barbed wire to a fence, it makes it very difficult to get over. Furthermore, it makes a bold statement to keep out!


The popular specifications of  Metal Palisade fence
Material: Q195 or Q235.
Size： Width(2750mm)*Height(1800, 2000,2100,2400,3000mm)
Parts of  Palisade fencing：
1) Post
Joist steel： 100*55*3.6mm
Square Tube: 60*60mm, 80*80mm, 100*100mm
2) Horizontal Rail (angle steel size): 50*50*4mm，5mm，6mm， 60*60*6mm
3) W/D pale: width: 67,70,75mm,thickness ：1.5, 2.0，2.5，3mm
4) Fish plate: 150*40*8mm
5) Anti-theft bolt and nut: M12*30mm, M8*25mm, M8*40mm
6) Surface treatment：hot dipped galvanized\hot dipped galvanized + PVC coating

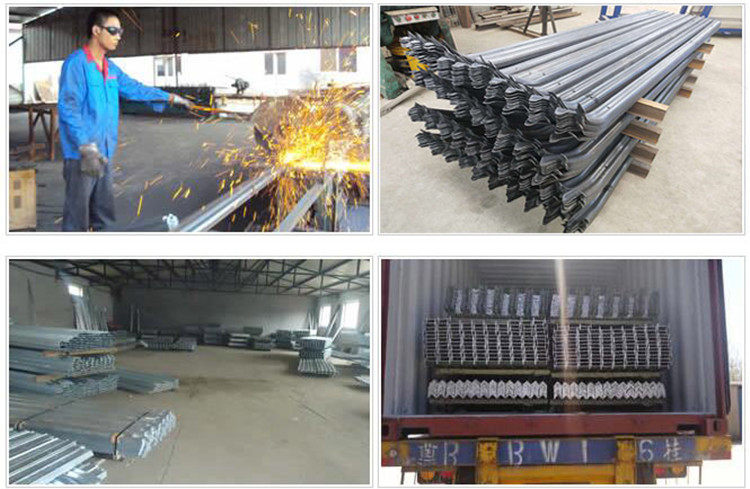

7) Processing: Punched into different models. Surface treatment can be hot dipped zinc plating, plastic spray coating and plastic coating.
8) Features: This kind of fencing product offers good corrosion resistance, age resistance, beautiful view, simple and easy installation.
9) Package: Packed with iron pallet.


10) Uses: Palisade Fencing is used in fencing, decoration and security facilities for industries, agriculture, city construction and transport.
